产品特点

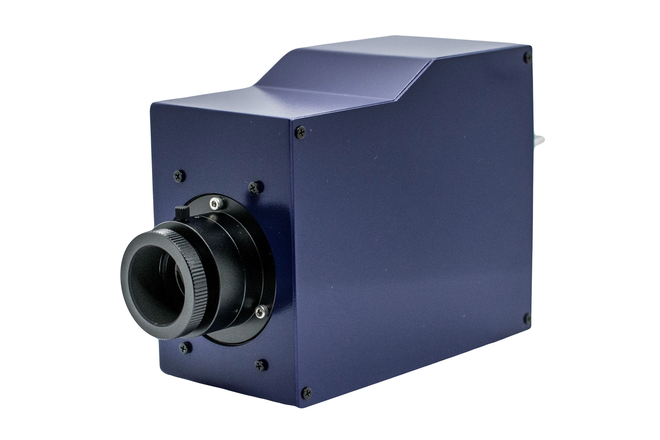

BV-C2950 consists of two kinds of sensors, one for taking the visible image of the object and the other for detecting electric discharge phenomenon. It uses a spectroscopic technology adopting a mirror to split the visible light (400nm to 700nm) and NUV rays (200nm to 400nm). BVC2950 has two sensors, a visible sensor with 640 × 480 pixels and an ultra-sensitive UV sensor, and one fixed focal lens. As two sensors and one lens are all in one package, images from two sensors are in the same field of view, which enables BVC2950 to precisely detect the originating point of the ESD damage.

ESD means ElectroStatic Discharge, and when the ESD occurs, it generates NUV rays from around 200nm to 400nm (UV-B). Since the light energy produced by ESD is very small, the ultra-sensitive sensor is required to capture this phenomenon.

〈Examples of Application〉
●　Manufacturing process of semiconductors (Discharge inside the substrates)
●　Production site for display panel
●　Places requiring ESD monitoring such as in chemical plants
　　　・Discharge on film delamination　　・Discharge of plastic products
●　ESD monitoring for moving workers
●　ESD of electric tools
●　Managing health injury of workers under electrostatic environment
　　　・Efficiency measurement of neutralization apparatus
●　Visualization of minimal corona discharge
