产品介绍

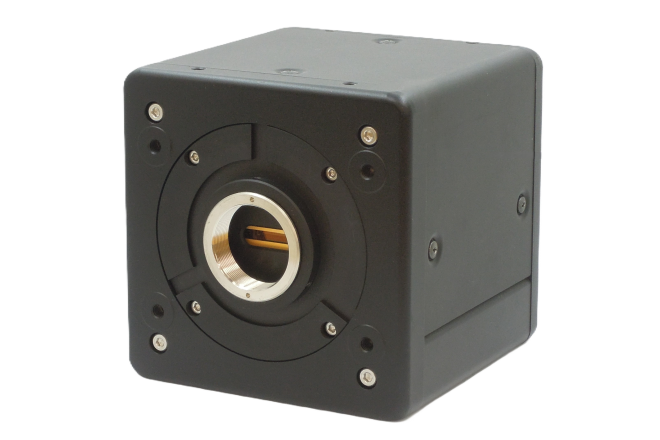

线扫 单板相机BV-C3120
BV-C3120 is a line scan camera dedicated to SWIR, with its sensor having the sensitivity from 1100nm to 1900nm. BV-C3120 is a build-to-order product.
产品特点
BV-C3120 equips InGaAs sensor of 25 micron pixel size and sensitivity from 1100nm to 1900nm. Its interface is CameraLink Base Configuration and the lens mount can be selected from C mount or M52 mount.
主要规格
| 光学 | ― |
|---|---|
| 芯片 | InGaAs、 25μm正方形 |
| 光谱段 | 1100nm～1900nm |
| 有效图像输出像素 | 512像素 |
| 行频 | 8.117kHz |
| 帧率 | ― |
| 接口 | CameraLink |
| 镜头接口 | C口、 M52口 |
| 外形尺寸（W×H×D） | 95mm × 95mm × 95mm |
| 重量 | 820g |
| 其他 | 订单生产 |
