面扫 单板相机BV-C340MH

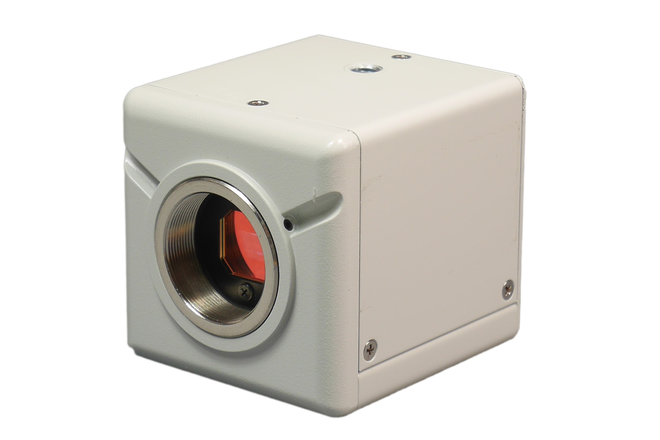

BV-C340MH is a monochrome camera employing 1/1.8-inch 3.2 mega global shutter CMOS sensor. The output is 1980×1080 pixels and it equips a 3G-SDI/HD-SDI interface. It can be used for FA applications together with a capture board which has 3G-SDI or HD-SDI interface.


● Global shutter, 3.2 mega, 1/1.8-inch, CMOS sensor
● 1920 × 1080 pixels output through 3G-SDI or HD-SDI interface
● Full HD outputs featuring 3G-SDI: 1080/60P/50P, HD-SDI: 1080/30P/25P, 1080/60i/50i
● EIA or CCIR output is available for monitoring
● Maximum 48dB gain up
● Minimum illumination of 0.008 lux (48dB gain, 1/30 fps, Binning ON)
● “ALC dual run” function supports a video output control in various lighting conditions by combining auto iris, electronic shutter and AGC
● Gain up with binning ON/OFF function (960 × 540 pixels image)
● Placing switches for On Screen Display on the rear panel to set camera functions
● Various functions to create appropriate images according to objects
   Electronic shutter, Digital noise reduction, Lens shading, Gamma, Auto bright, Digital zoom,
   Fog reduction, Digital image stabilizer, Back light, Freeze, NEGA-POSI reverse
● Control the camera through RS485 interface
● HD_CONT_TOOL is available to control the camera remotely


芯片 1/1.8" B/W CMOS、 3.45μm正方形
光谱段 400nm~700nm
有效图像输出像素 1920(H) × 1080(V)
接口 RS-485
镜头接口 CS口
外形尺寸(W×H×D) 55mm × 55mm × 61mm
重量 235g
其他 最低物体照度:0.008lx、 输出格式:3G-SDI、 HD-SDI、 EIA/CCIR
