产品特点

●　1/1.8” 3.2M pixel CMOS sensor with the global shutter
●　42mm × 42mm small size, three boards configuration
●　Full HD outputs featuring 3G-SDI: 1080/60P/50P, HD-SDI: 1080/30P/25P, 1080/60i/50i
●　Analog output is simultaneously available for monitoring (Color: NTSC/PAL)
●　DC lens iris control (Day & Night function)
●　Maximum 48dB gain up
●　Back light correction (OFF/ON) (detection area selectable)
●　Corresponds to internal/external synchronization (HD/VD)
●　Gain up with 2:1 binning ON/OFF function (960 × 540 pixels image)
●　Various functions to create the image suitable for the shooting environment:
　　　Digital noise reduction (2D & 3D)
　　　Digital zoom (maximum 6 times)
　　　Fog reduction
　　　Digital image stabilization (only for HDTV output)
●　Camera control by on-screen menu or serial interface

〈Merchandise Line〉

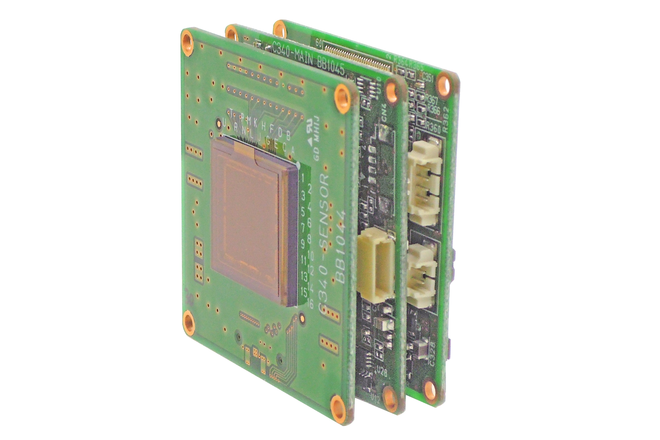

●　Board construction: Sensor board, Main board, SDI I/F board, one each
●　BV camera control tool (attached at the time of the first shipment)
●　Instruction manual (attached at the time of the first shipment)
●　Communication manual (attached at the time of the first shipment)
