面扫 单板相机BV-C340H

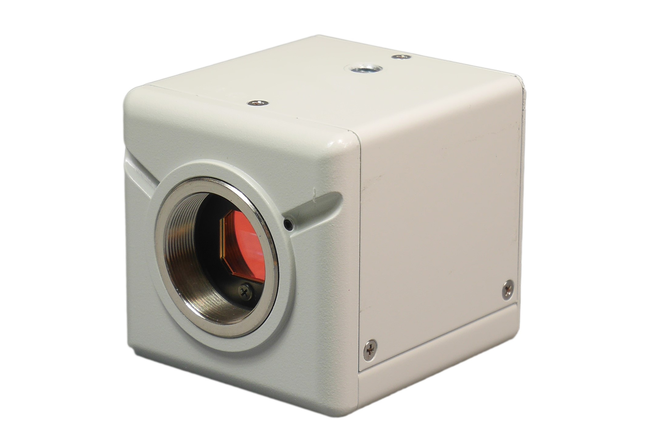

BV-C340H is a HDTV color video camera utilizing 1/1.8-inch global shutter CMOS sensor. It provides 1920×1080 pixels, progressive 60 frames or 50 frames per second and other HDTV formats. The interface for HDTV signals is 3G-SDI or HD-SDI.


● Global shutter, 3.2 mega, 1/1.8-inch CMOS sensor
● 1920 × 1080 pixels output through 3G-SDI or HD-SDI interface
● Full HD outputs featuring 3G-SDI: 1080/60P/50P, HD-SDI: 1080/30P/25P, 1080/60i/50i
● NTSC or PAL output is available for monitoring
● Maximum 48dB gain up
● Minimum illumination of 0.015 lux (48dB gain, 1/30 fps and binning ON)
● “ALC dual run” function supports a video output control in various lighting conditions by combining auto iris, electronic shutter and AGC
● Internal or External synchronization (HD/VD)
● Gain up with 2:1 binning ON/OFF function (960 × 540 pixels image)
● Placing switches for On Screen Display on the rear panel to set camera functions
● Various functions to create the image suitable for the shooting environment
   Electronic shutter, Auto white balance, Digital noise reduction, Lens shading, Gamma, Auto bright,
   Digital zoom, Fog reduction, Digital image stabilization, Back light, Freeze, NEGA-POSI reverse
● Control the camera through RS485 interface
● HD_CONT_TOOL is available to control the camera remotely


芯片 1/1.8" Bayer CMOS、 3.45μm正方形
光谱段 400nm~700nm
有效图像输出像素 1920(H) × 1080(V)
接口 RS-485
镜头接口 CS口
外形尺寸(W×H×D) 55mm × 55mm × 61mm
重量 235g
其他 最低物体照度:0.015lx、 输出格式:3G-SDI、 HD-SDI、 NTSC/PAL
