Lens for Prism Spectroscopic SWIR CameraBV-L1024-SWIR-M

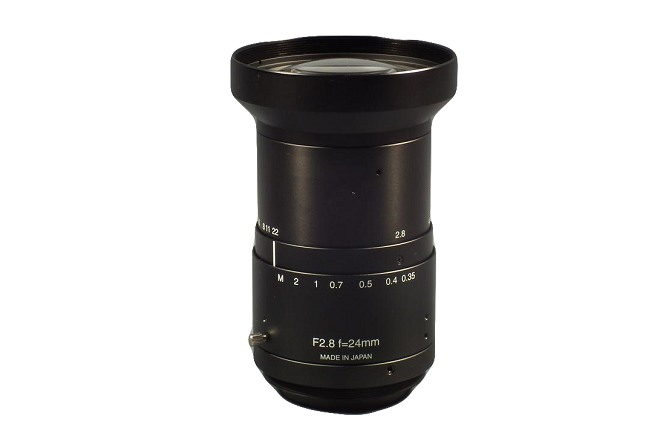

products image






Features


●　Designed to be suitable for prism spectroscopic SWIR cameras
●　Spectral response covering SWIR (shortwave infrared) area
●　High resolution optics design for 12μm pixel size
●　Maximum aperture ratio of F2.8
●　300mm from the lens front for WD (work distance)
●　M52 mount is available







Specification





              Image sensor length
              15mm





              Flange back (in air)
              46.5mm





              Focal length
              24mm





              Maximum aperture ratio
              F2.8





              Iris diaphragm range
              F2.8　～　F22





              Minimum object distance
(Measured from the lens surface)
              0.3m





              Angle of view
              31.94°






              Applicable pixel size
              12µm





              Filter diameter
              67mm　（P 0.75）





              Mount type
              M52





              Dimensions (Maximum φ)
              φ69mm　×　98mm





              Weight
              530g
