Our technology allows you to capture spectroscopic imaging of your fast moving and rolling object to the smallest detail at the same moment in the same spot, without compromising with its speed. As you can determine your desired wavelengths for creating your data, our 2, 3 or 4 sensor camera will be helpful in solving your application such as semiconductor wafer inspection, food inspection, pill inspection, sorting of recycling materials and so on.
The incident light is separated into multiple wavelengths by designing dichroic mirror and trimming filter, going through the sensor and outputting as image data. It is able to separate the light into specific wavelengths, not only in the range of visible bandwidth but also in the range of near infrared (NIR) or short wave infrared (SWIR).
Besides, we have standard video camera line such as HDTV camera, HDTV auto focus camera and high sensitivity camera for general purpose applications.

Line Scan – 4 Sensor Prism Spectroscopic Camera

BVC6100
4K CMOS RGB+NIR High resolution Close color reproduction
Product Details
BVC6200
4K CMOS + 1K InGaAs RGB+SWIR High resolution Close color reproduction
Product Details

Line Scan – 3 Sensor Prism Spectroscopic Camera

BV-C5400CXP
4K CMOS RGB High resolution Close color reproduction
Product Details
BVC5404
4K CMOS RGB High resolution Close color reproduction
Product Details
BVC5410
4K CMOS RGB High resolution Close color reproduction High speed High sensitivity
Product Details
BVC5201
2K CMOS RG+NIR
Product Details
BVC5204
2K CMOS RGB Close color reproduction
Product Details
BVC5210
2K CMOS RGB Close color reproduction High speed High sensitivity
Product Details

Line Scan – 2 Sensor Prism Spectroscopic Camera

BV-C3210
0.5K InGaAs SWIR 900nm~1290nm/1290nm~1900nm
Product Details
BVC3220
1K InGaAs SWIR 900nm~1290nm/1290nm~1600nm
Product Details
BVC3221
0.5K InGaAs SWIR 900nm~1290nm/1290nm~1600nm
Product Details
BV-C3300
4K CMOS Polarized Visible light High resolution
Product Details
BVC3320
2K High speed CMOS Polarized Visible light
Product Details
BVC3340
4K High speed CMOS Polarized Visible light High resolution
Product Details
BV-C3350
4K CMOS Bi-focal Visible light High resolution
Product Details
BV-C3500
4K CMOS Visible+SWIR 400nm~1680nm High resolution
Product Details
BV-C3510
4K CMOS Visible+SWIR 400nm~1900nm High resolution
Product Details

Line Scan – Single Sensor Camera

BV-C3103
0.5K InGaAs SWIR 900nm~1700nm High speed Compact
Product Details
BV-C3110
1K InGaAs SWIR 900nm~1700nm High speed Compact
Product Details
BV-C3120
0.5K InGaAs SWIR 1100nm~1900nm
Product Details
BV-C2906
0.5K InGaAs SWIR 900nm~2550nm Peltier cooling type
Product Details
BV-C3000
4K CMOS RGB Dual line High resolution Compact
Product Details
BV-C3105
0.5K InGaAs SWIR 950nm~1700nm Rectangular pixel
Product Details

Area Scan – 3 Sensor Prism Spectroscopic Camera

BV-C8321
1.58M CMOS RGB High speed High sensitivity Lightweight Compact
Product Details
BVC8350
5M CMOS RGB High sensitivity High resolution
Product Details
BVC8360
5M CMOS RGB+NIR1+NIR2 High speed High sensitivity High resolution Lightweight Compact
Product Details

Area Scan – 2 Sensor Prism Spectroscopic Camera

BV-C8220
1.58M CMOS RGB+NIR High sensitivity
Product Details
BV-C8225
1.58M CMOS Visible+NIR High sensitivity
Product Details

Area Scan – Single Sensor Camera

BV-C2900
VGA InGaAs SWIR 950nm~1700nm Peltier cooling type
Product Details
BV-C2901
VGA InGaAs SWIR 950nm~1700nm Peltier & air cooling type
Product Details
BV-C2903
QVGA InGaAs SWIR 950nm~1700nm Peltier cooling type
Product Details
BV-C340H
CMOS HDTV Color High sensitivity Compact Wide use
Product Details

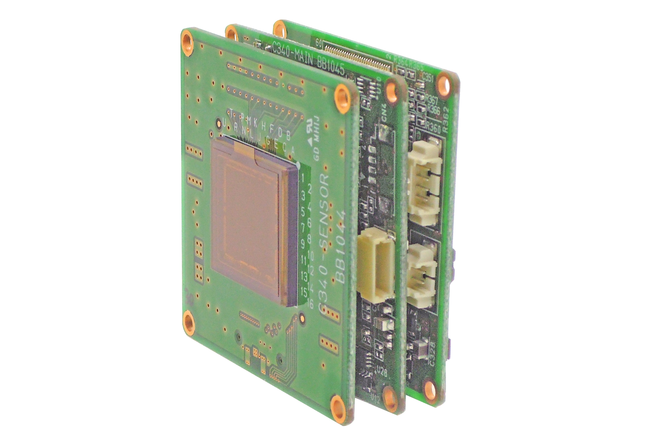

BV-C340(Module)
CMOS HDTV Color High sensitivity Compact Wide use
Product Details
BV-C340MH
CMOS HDTV B/W High sensitivity Compact Wide use
Product Details
BV-C340M (Module)
CMOS HDTV B/W High sensitivity Compact Wide use
Product Details

Area Scan – Unique Camera

BV-C2950
VGA NUV+Visible Visualizing ESD(Electrostatic Discharge)
Product Details
BV-C2953
VGA Wide bandwidth NUV~NIR Compact Without cover glass
