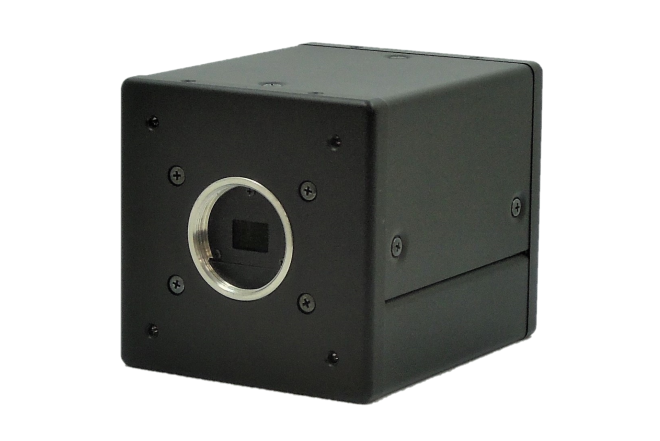

Area Scan – 3 Sensor Prism Spectroscopic CameraBVC8350GC
BVC8350GC is a 3CMOS “RGB” area scan camera which covers visible wavelength range by 1/1.8inch 5megapixels global shutter CMOS sensors with a high-quality spectroscopic prism. Full size readout is up to 70fps(*) at 8bit mode, with even higher frame rates achieved using binning and ROI features. C-mount lenses and 10GigE compatible interface over SFP+ is supported.
Features
● 3 x 2448(H) x 1840(V) pixels, 2.74μm size, Global shutter CMOS area sensors ● Full resolution readout: 70fps@8bit(*), binning mode: (TBD) ● Compact size, light weight ● Precise shutter setting Non-overlap mode: 0.0135μs step Overlap mode: 1H step (the length (μs) of 1H depends on output format) ● Gain adjustment from -6dB to +27dB(*) ● Partial scan readout (ROI) is available for faster capturing ● Shading correction, Image enhancement and LUT ● Internal/external trigger mode ● 2 types of electronic shutter modes (Timed, Pulse width) ● Interface : SFP+ (10GBase-T/10GBase-SR), GigE Vision 2.0 ● Original SDK is available (VC#, VC++ is supported) (*) Tentative
Specification
| Optics | 1/2" 3 sensor spectral prism |
|---|---|
| Sensor | 1/1.8" B/W CMOS ×3, 2.74μm square |
| Bandwidth | 400nm～720nm |
| Effective image output | 2448（H） × 1840（V） |
| Line frequency | ― |
| Frame rate | 80fps（max） |
| Interface | 10GigE |
| Lens mount | C mount |
| Dimensions (W×H×D) | 70mm × 70mm × 85mm |
| Weight | 420g |
